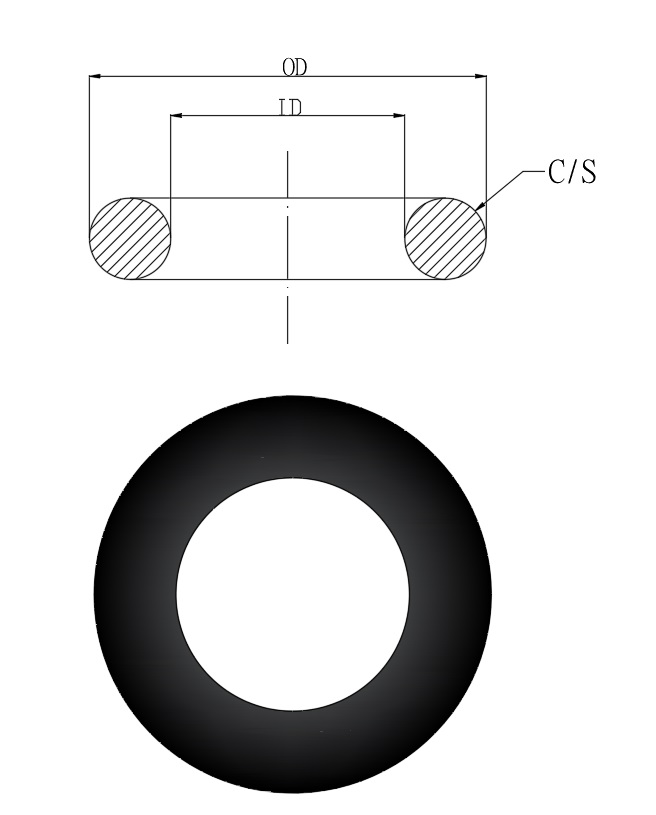

O-Ring
O-ring seals can be used as sealing elements,
and can also be used as force elements for hydraulic sliding seals and dust seals.
Therefore, it is widely used in various fields.
AS 568 A O-RING STANDARD SIZE
JIS B 2401 O-RING STANDARD SIZE
In the industrial field, whether it is a single seal for repair or maintenance,
or in applications that require quality assurance such as: aerospace, automotive industry and general industry, there is no O-ring seal that does not use it.
Used as a radial static seal, such as: the seal of shaft sleeves, seal covers, pipes, oil cylinders, etc.
Used as axial static seal, such as: flange, plate and end cover, etc.
In fact, there are a variety of rubber compounds available, some of which are listed below.
|
Type of Rubber |
Material |
Characteristics |
|
Nitrile |
NBR |
For general use |
|
Nitrile |
NBR |
Low friction |
|
Nitrile |
NBR |
Resistanct Ozone |
|
Fluorinated |
VITON (FKM) |
Very high temperature and chemical resistance |
|
Ethylene Propylene |
EPDM |
Good weather and ozone resistance, used with special chemicals such as acetone, am-monium carbonate and benzaldehyde |
|
Chloroprene |
NEOP |
For applications in the presence of ozone |
|
Hydrogenated Nitrile |
HNBR |
Hypoid oils at high temp. |
|
Silicone Rubber |
SILICONE |
It
has excellent heat resistance, cold resistance, ozone resistance and
atmospheric aging resistance. |
|
Size Chart Download |
|
|
O-RING - AS 568A |
|
|
O-RING - G TYPE |
|
|
O-RING - P TYPE |
|
|
O-RING - S TYPE |
|
|
O-RING - V TYPE |
|
